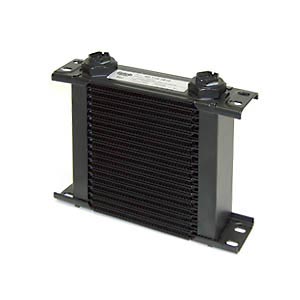

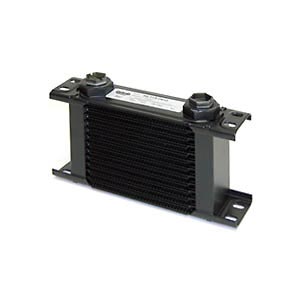

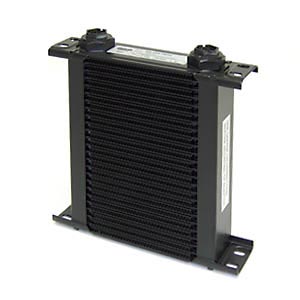

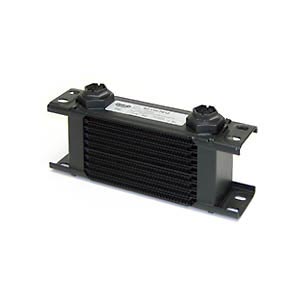

The Setrab ProLine Standard range oil coolers are the most flexible high-performance oil coolers on the market. The series integrates low-profile 22mm female ports for adaptability to any system using ProLine adapter fittings.

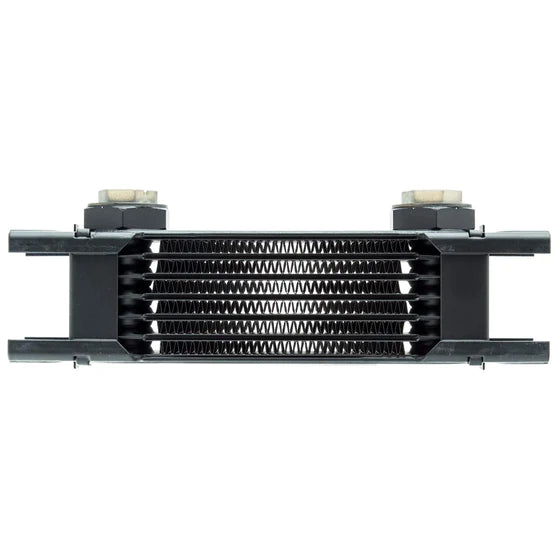

The stacked-plate style of Setrab's STD range offers the advantage of many height possibilities within the various series' widths. In addition, this technique coupled with state-of-the-art brazing technology makes for a durable, highly-efficient, and beautifully simplistic design that is often imitated but never replicated.
All the 100 Series of coolers measure 8.25 Inches total width
The holes for mounting are all 7.50 center to center
Core width is 6.42 inches and are 1.83 Inches thick on all coolers
The inlet to outlet dimension is 4.80 Inches
The height of the core varies on the model of cooler
